CARBON STEEL WN FLANGE EN 1092-1 TYPE 11
CARBON STEEL WELD NECK FLANGE EN 1092-1 TYPE 11 PN 16
What Is EN 1092-1 Standard ?
This British Standard is the Implementation of EN 1092-1. It Supersedes BS EN 1092-1 which is withdrawn. The UK participation in its preparation was entrusted to Technical Committee. PSE/15, Flanges. In BS EN 1092-1. A European metric standard that covers Specification for Circular flanges, Ranging from DN size 10 to 4000 and PN designations of 2, 5 and 100.
Stockist of Stainless Steel EN 1092-1 Flanges, EN 1092-1 Class 150 EN 1092-1 Flange, EN 1092-1 Pipe Flanges, Global Supplier of EN 1092-1 Flanges, ASTM A182 SS EN 1092-1 Flange, EN 1092-1 Block Flange Dealer in China, EN 1092-1 Blind Flanges, EN 1092-1 Lapped Joint Flanges, EN 1092-1 Threaded Flange, EN 1092-1 Plate Flange Wholesaler.
Standard Specification For EN 1092-1 steel Flange :
- Type:Plate Flange, Welding neck flange, steel butt-welded flanges, slip on flange, blind flange, welded neck flange, thread flange, lapped joint flange (loose flange), socket welded flange, Orifice Flanges, long weld neck flange, Raised Face Weld Neck Flange and special flange.
- Material: Carbon steel: A105, SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
- Standard: ANSI/ASME B16.47 Ser.A, EN 1092-1 Flange.
- Dimensions : Asme B16.5, DIN Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Size : 1/2" (15 NB) to 48" (1200NB)
- Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
- BS : BS4504 , BS4504, BS1560, BS10
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of EN 1092-1 Flanges :
Carbon Steel
• ASTM A 105 / A 266 Gr. 2 (high temperature carbon steel)
• ASTM A350 LF1 to LF3 (low temperature carbon steel)
• ASTM A694 Gr. F42 / F52 / F56 / F60 / F65 (high yield carbon steel flange to match API 5L linepipes)
Alloy Steel
• ASTM A182 Gr. F1 / F2 / F5 / F9 / F11 Cl. 2 / F12 Cl. 2 / F22 Cl. 3 / F91 (alloy steel flanges)
Stainless
• ASTM A182 F 304/304L, 316/316L, 321, 347, 348 (stainless steel flanges), 904/904L
description:

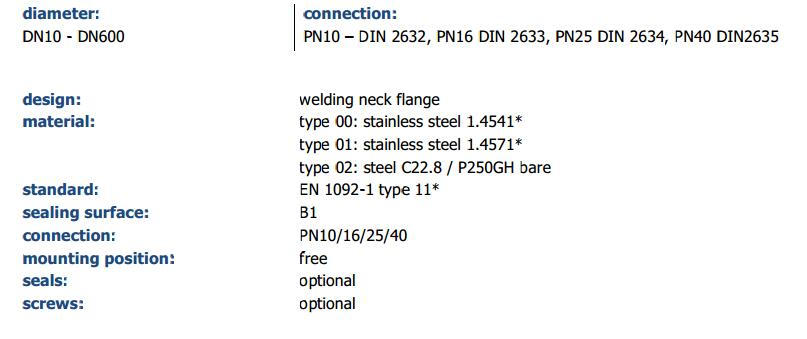

Welding neck flange acc. to EN 1092-1 type 11 to weld on pipes and fittings. These flanges are useful to connect pipes or to integrate valves into a pipeline system.
product features: - suitable for liquid and gaseous media - DIN EN 1092-1 type 11
For the designation |
a |
b |
D |
f |
H |
h |
N1 |
s |
R1 |
Holes nr. |
Thread of the screw |
Theoretical weightkg |
|
DN |
d1 |
||||||||||||
15 |
21,3 |
65 |
16 |
95 |
14 |
38 |
6 |
32 |
2,0 |
4 |
4 |
M 12 |
1.0 |
20 |
26,9 |
75 |
18 |
105 |
14 |
40 |
6 |
40 |
2,3 |
4 |
4 |
M 12 |
1.0 |
25 |
33,7 |
85 |
18 |
115 |
14 |
40 |
6 |
46 |
2,6 |
4 |
4 |
M 12 |
1.0 |
32 |
42,4 |
100 |
18 |
140 |
18 |
42 |
6 |
56 |
2,6 |
6 |
4 |
M 16 |
2.0 |
40 |
48,3 |
110 |
18 |
150 |
18 |
45 |
7 |
64 |
2,6 |
6 |
4 |
M 16 |
2.0 |
50 |
60,3 |
125 |
18 |
165 |
18 |
45 |
8 |
74 |
2,9 |
5 |
4 |
M 16 |
2.8 |
65 |
76.1 |
145 |
18 |
185 |
18 |
45 |
10 |
92 |
2,9 |
6 |
4 |
M 16 |
3.0 |
80 |
88.9 |
160 |
20 |
200 |
18 |
50 |
10 |
105 |
3,2 |
6 |
8 |
M 16 |
4.0 |
100 |
114,3 |
180 |
20 |
220 |
18 |
52 |
12 |
131 |
3,6 |
8 |
8 |
M 16 |
4.5 |
125 |
139,7 |
210 |
22 |
250 |
18 |
55 |
12 |
156 |
4,0 |
8 |
8 |
M 16 |
6.5 |
150 |
168,3 |
240 |
22 |
285 |
22 |
55 |
12 |
184 |
4,5 |
10 |
8 |
M 20 |
7.5 |
200 |
219,1 |
292 |
24 |
340 |
22 |
62 |
16 |
235 |
|||||
